## Setup on a Synology NAS
There is a proxy preinstalled in DSM, so if you want to access vikunja from outside,
you can prepare 2 proxy rules:
* a redirection rule for vikunja's api (see example screenshot using port 3456)
* a similar redirection rule for vikunja's frontend (using port 4321)

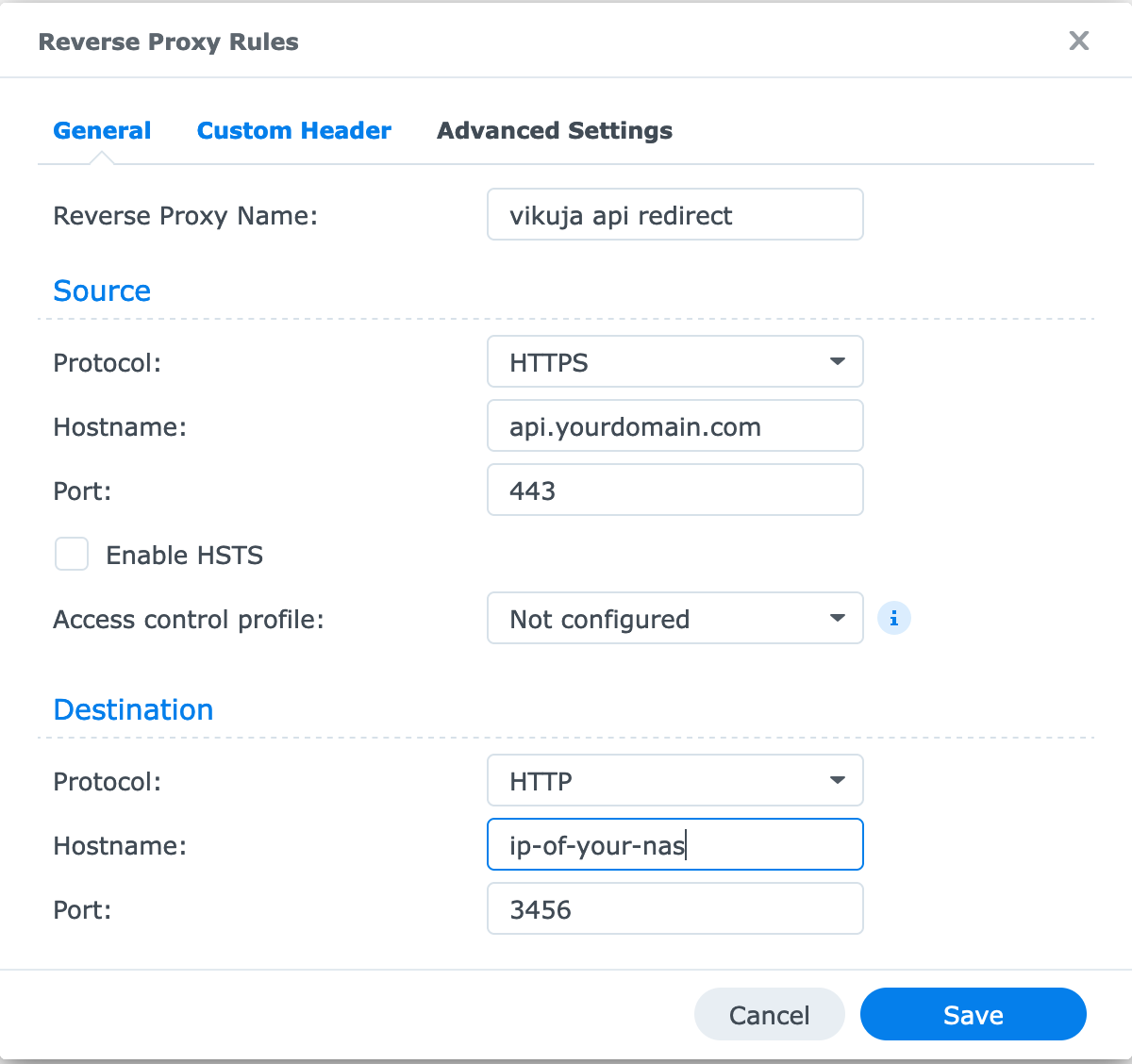

![Synology Proxy Settings](/synology-proxy-1.png)
You should also add 2 empty folders for mariadb and vikunja inside Synology's
docker main folders:
* Docker
* vikunja
* mariadb
Synology has it's own GUI for managing Docker containers... But it's easier via docker compose.
To do that, you can
* either activate SSH and paste the adapted compose file in a terminal (using Putty or similar)
* without activating SSH as a "custom script" (go to Control Panel / Task Scheduler / Create / Scheduled Task / User-defined script)
* without activating SSH, by using Portainer (you have to install first, check out [this tutorial](https://www.portainer.io/blog/how-to-install-portainer-on-a-synology-nas) for exmple):
1. Go to **Dashboard / Stacks** click the button **"Add Stack"**
2. Give it the name Vikunja and paste the adapted docker compose file
3. Deploy the Stack with the "Delpoy Stack" button:

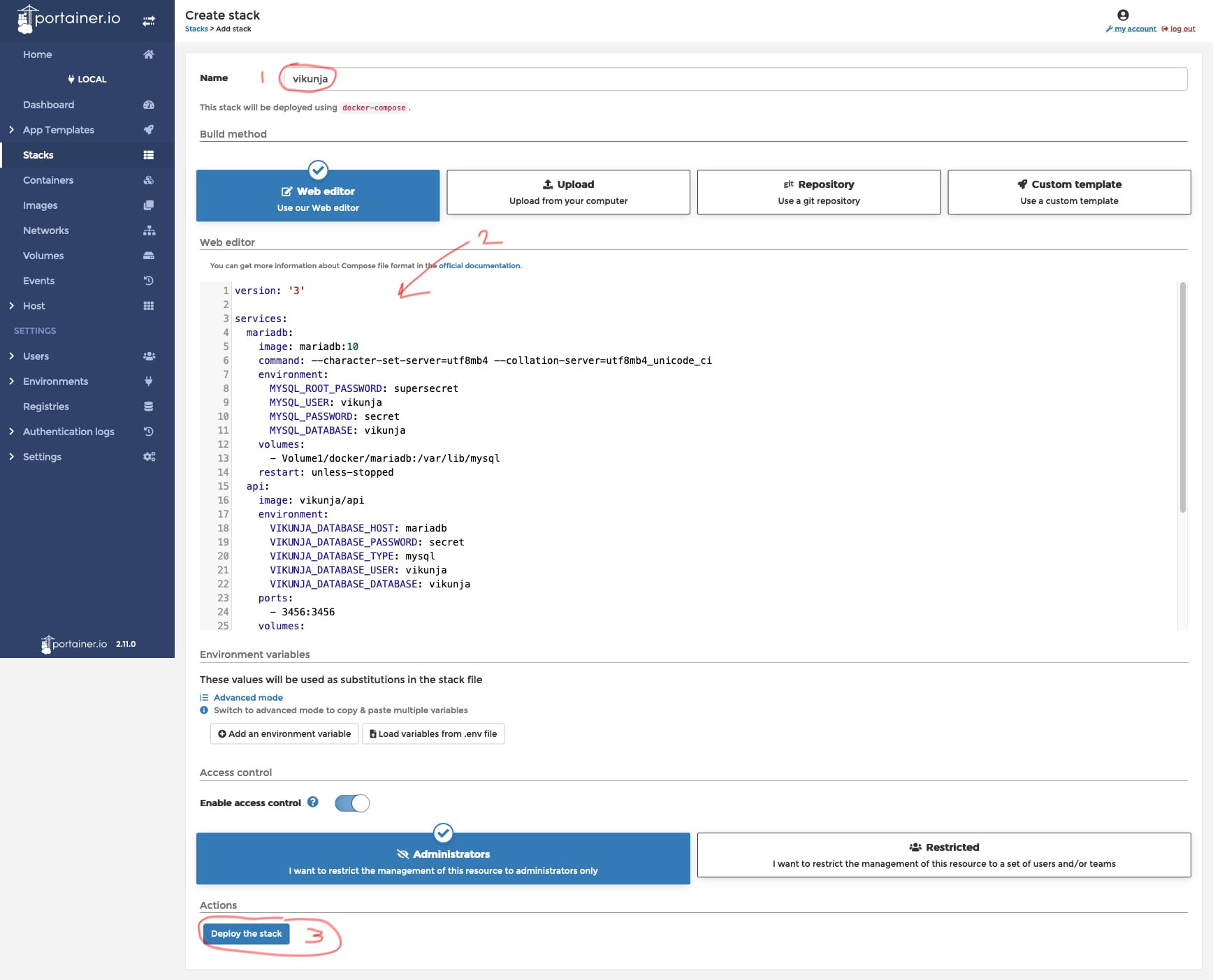

![Portainer Stack deploy](/synology-proxy-2.png)
The docker-compose file we're going to use is very similar to the [example without any proxy](#example-without-any-proxy) above:
{{< highlight yaml >}}
version: '3'
services:
db:
image: mariadb:10
command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
environment:
MYSQL_ROOT_PASSWORD: supersecret
MYSQL_USER: vikunja
MYSQL_PASSWORD: secret
MYSQL_DATABASE: vikunja
volumes:
- ./db:/var/lib/mysql
restart: unless-stopped
api:
image: vikunja/api
environment:
VIKUNJA_DATABASE_HOST: db
VIKUNJA_DATABASE_PASSWORD: secret
VIKUNJA_DATABASE_TYPE: mysql
VIKUNJA_DATABASE_USER: vikunja
VIKUNJA_DATABASE_DATABASE: vikunja
ports:
- 3456:3456
volumes:
- ./files:/app/vikunja/files
depends_on:
- db
restart: unless-stopped
frontend:
image: vikunja/frontend
ports:
- 4321:80
environment:
VIKUNJA_API_URL: http://vikunja-api-domain.tld/api/v1
restart: unless-stopped
{{< /highlight >}}
You may want to change the volumes to match the rest of your setup.
Once deployed, you might want to change the [`PUID` and `GUID` settings]({{< ref "install-backend.md">}}#setting-user-and-group-id-of-the-user-running-vikunja) or [set the time zone]({{< ref "config.md">}}#timezone).
After registering all your users, you might also want to [disable the user registration]({{<ref "config.md">}}#enableregistration).
